  • Conaiderd the P-V diagram given bebw for a cyclir process. Find the net heat supplied  to a system during process. <img alt="" src="https://cdn.entrance360.com/media/uploads/2

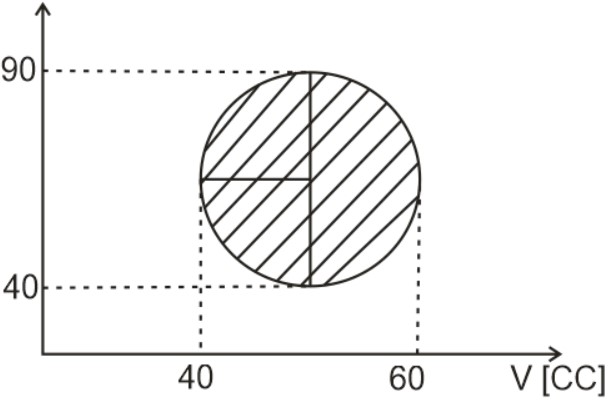

Conaiderd the P-V diagram given bebw for a
cyclir process. Find the net heat supplied  to a system during process.




Option: 1

39 \mathrm{~\pi J}


Option: 2

57 \mathrm{~\pi J}


Option: 3

2 \mathrm{~\pi J}


Option: 4

-25 \mathrm{~\pi J}


Answers (1)

best_answer

In a cyclic process so the Net change in internal energy of the system will be zero.
i.e,
                          \mathrm{\Delta v=0}

from Exist law of thermodynamic

                    \begin{aligned} \Delta \mathrm{Q} &\mathrm{ =\Delta U+\Delta W }\\ \therefore \Delta Q &\mathrm{ =\Delta W} \end{aligned}

\Delta \omega= is the area of stander Region

\begin{aligned} \text { cycle }=& \text { waycle }= \\ &\mathrm{ =\pi \times 25 \times 10 \quad \quad \mathrm{kpa}-\mathrm{CC} }\\ &\mathrm{ =\pi(25)(10) \times 10^3 \times 10^{-6} }\\ &\mathrm{ =.250 \mathrm{~\pi J} }\\ \end{aligned}

Posted by

shivangi.shekhar

View full answer
