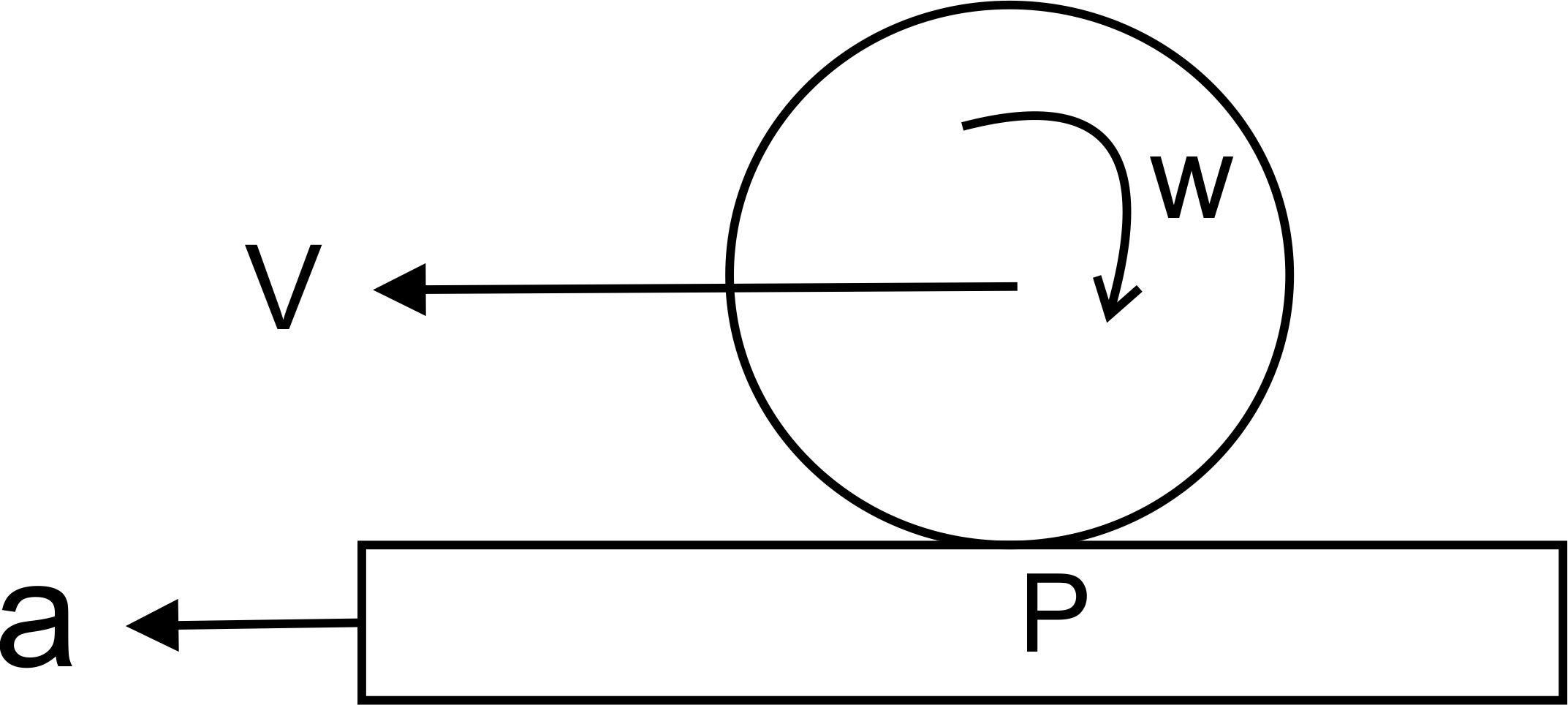

 Consider a cylinder of mass M resting on a rough horizontal rug that is pulled out  from  under  it  with  acceleration  ‘a’ perpendicular to the axis of the cylinder.  What is Ffriction at point P ? It is assumed that the cylinder does not slip.





  • Option 1) Mg



  • Option 2) Ma



  • Option 3) Ma/2



  • Option 4) Ma/3





Answers (1)

best_answer

As we have learned

Rolling motion -

V_{cm}= Rw\rightarrow pure \: rolling

V_{cm}> Rw\rightarrow slipping \: motion

V_{cm}< Rw\rightarrow skidding \: motion

-





a_p  due to translation = F/m

Angular acceleration of point p

     \alpha = \frac{T}{I}= \frac{F \cdot r}{I} = \frac{F r }{\frac{mr^2}{2}}= \frac{2F}{mr}

Acceleration of P due to both traslational and rotation = \frac{F}{m} + \frac{2F}{mr}\cdot r

a = \frac{3F }{m }

F = \frac{ma }{3}










Option 1)

Mg

Option 2)

Ma

Option 3)

\frac{Ma}{2}

Option 4)

\frac{Ma}{3}
