  • (a) In the following diagram ‘S’ is a semiconductor. Would you increase or decrease the value of R to keep the reading of the ammeter A constant when S is heated ? Give reason for your answer. <img alt="" src="https://cdn.entrance

(a) In the following diagram ‘S’ is a semiconductor. Would you increase or decrease the value of R to keep the reading of the ammeter A constant when S is heated ? Give reason for your answer.

(b) Draw the circuit diagram of a photodiode and explain its working. Draw its I -V characteristics.









Answers (1)

(a) On heating, the semiconductor the value of resistance decreases, so as to keep current constant the value of R should be increased.

(b) Photodiode



\rightarrow A photodiode is operated under reverse bias

\rightarrow Photodiode accept light energy as input to generates an electric current.

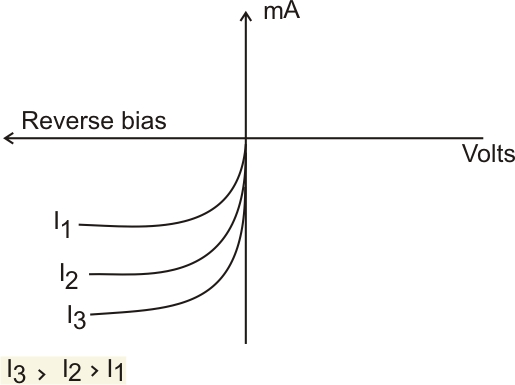

IV-  Characteristics of the photodiode



Posted by

Safeer PP

View full answer
