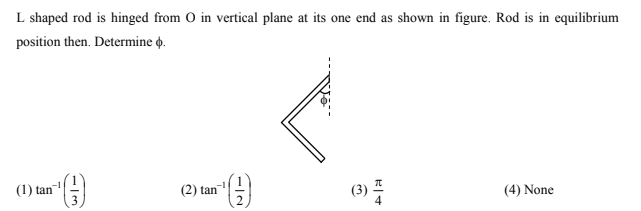

  • L shaped rod is hinged from O in vertical plane at its one end as shown in figure. Rod is in equilibriumposition then. Determine φ

Answers (1)

best_answer

mg C1X1 = mg sin \theta

mg C2X2 = (S1S2 - S2C2) mg = mg \frac{L}{2} cos  \theta - mg Lsin\theta





mg C1X1  = mg C2X2

\Rightarrow tan \theta = \frac{1}{3}



Posted by

avinash.dongre

View full answer
