  • Need clarity, kindly explain! - Communication Systems - JEE Main

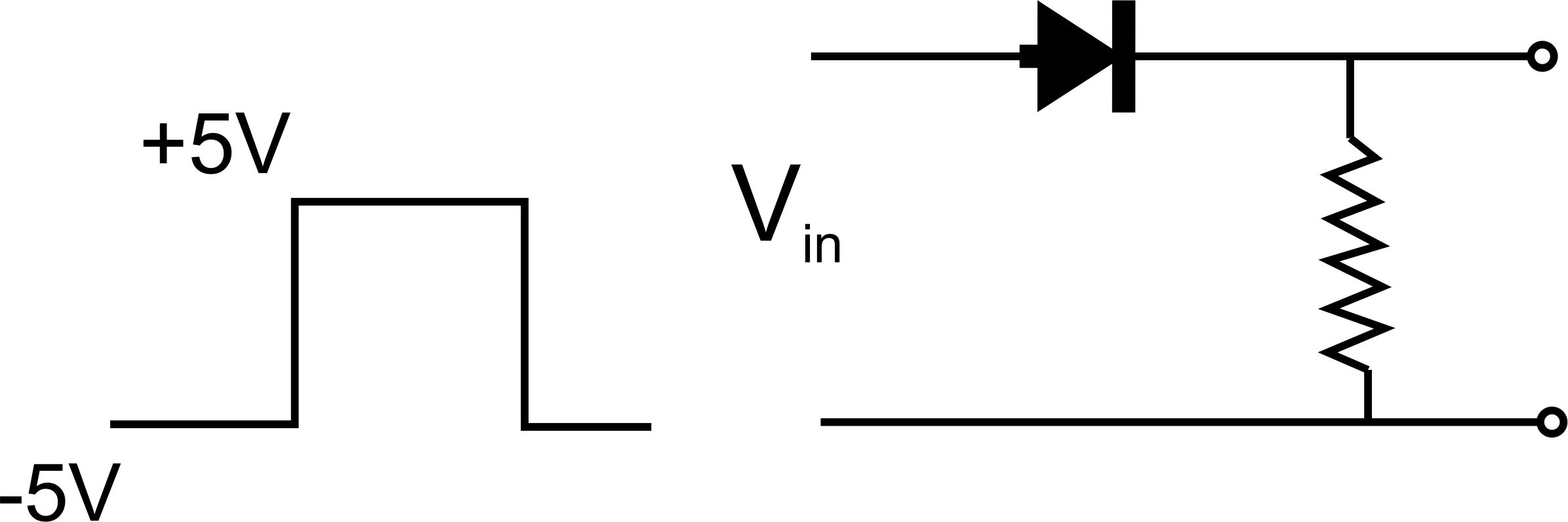

If in a p-n  junction diode, a square input signal of 10 V is applied as shown

Then the output signal across R_L will be



  • Option 1)

  • Option 2)

  • Option 3)

  • Option 4)



Answers (1)

best_answer

As we have learnt,



P -N junction as diode -

It is a one way device. It offers a low resistance when forward biased and high resistance when reverse biased.

- wherein

R = 0, Forward

R  \rightarrow \infty Reverse





When input is -5V, then diode is reverse biased and hence output is zero

When input is +5V, then output is also +5V






Option 1)

Option 2)

Option 3)

Option 4)
