(a) Draw graphs showing the variations of inductive reactance and capacitive reactance with frequency of the applied ac source.

(b) Draw the phasor diagram for a series RC circuit connected to an ac source.

(c) An alternating voltage of 220 V is applied across a device X, a current of 0.25 A flows, which lag behind the applied voltage in phase by \frac{\pi }{2} radian. If the same voltage is applied across another device Y, the same current flows but now it is in phase with the applied voltage.

(i) Name the devices X and Y.

(ii) Calculate the current flowing in the circuit when the same voltage is applied across the series combination of X and Y.








Answers (1)

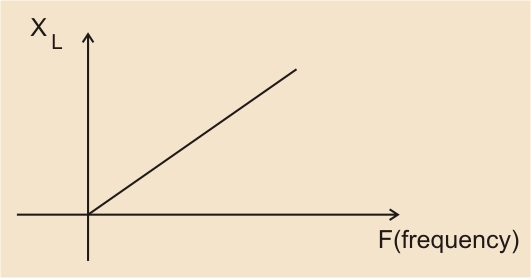

(a) Inductive reactance

            X_{L}=2\pi fc



capacitor reactance

            X_{C}=\frac{1}{2\pi fc}



(b) In an RC circuit current lead voltage by an angle (say \theta)



(c) (i) X is inductance and y is resistance

     (ii) X_{L}=\frac{220}{0.25}=880\Omega

                R=880\Omega

I=\frac{V}{Z}=\frac{220}{\sqrt{R^{2}+X_{L}^{2}}}=\frac{220}{880\sqrt{2}}=0.177\; A
