- In the following circuit, the correct relation between output and inputs <img alt="\mathrm{A}" src="/latex-image/?%5Cmathrm%7BA

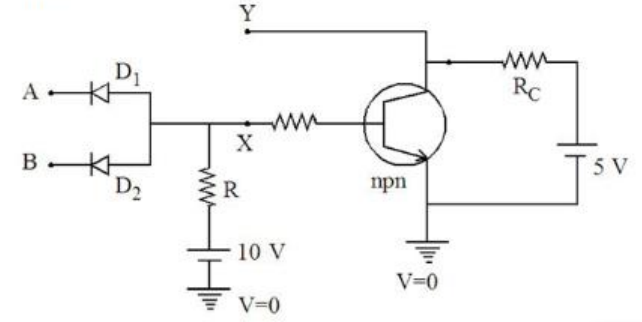

In the following circuit, the correct relation between output and inputs
and
will be :
Option: 1
Option: 2
Option: 3
Option: 4
Answers (1)
Here the circuit can be said to be composed of two parts. The first part is AND gate and the second part is NOT gate realisation. So, overall it is the NAND gate.
Hence the correct option is 3
View full answer
