  • The capacitors are connected to . source of 100 volts shown in the adjoining figure If the charge ac

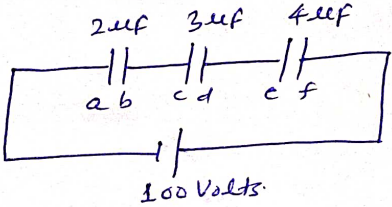

The capacitors are connected to \mathrm{OC}. source of 100 volts shown in the adjoining figure If the charge accumulated on plates of \mathrm{c_{1}, c_{2}, c_{3}} are \mathrm{q_{a}, q_{b}, a_{c}, q_{d}, q_{e}} and respectively, then

Option: 1

\mathrm{q_{b}+q_{d}+q_{f}=\frac{100}{9} c}


Option: 2

\mathrm{q_{b}+q_{d}+q_{f}=0}


Option: 3

\mathrm{q_{a}+q_{c}+q_{e}=50\, c}


Option: 4

\mathrm{q_{b}=q_{d}=q_{f}}


Answers (1)

best_answer

All three capacitors connected in series. According to the mathematical equation of change.

\mathrm{q=i \cdot t \quad \text { or } q =c \cdot v}
\mathrm{q \propto c}

Charge will be same for all capicotors because capacitor connected in series.

\mathrm{ q \, \alpha \, c \text { or } q \, \alpha \, v}
\mathrm{ q_{b}=q_{d}=q_{f} }  Ans.

Posted by

Anam Khan

View full answer
