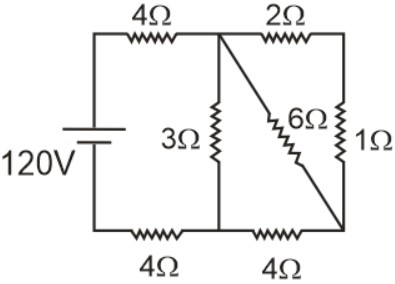

The current passing through $2\, \Omega$ resistance is:

Option: 1
$\frac{4}{3} \mathrm{~A}$

Option: 2
$\frac{5}{3} \mathrm{~A}$

Option: 3
$2 \mathrm{~A}$

Option: 4
$\frac{8}{3} \mathrm{~A}$

Answers (1)

best_answer

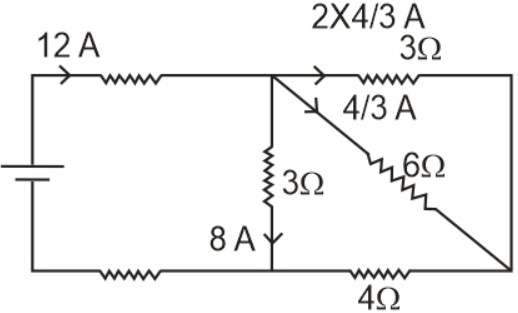

We can replace the right part of the circuit with an equivalent resistance of $2 \, \Omega$ .

$2 \, \Omega$ and $1 \, \Omega$ in series $= 3 \, \Omega$ .
$3 \, \Omega$ and $6\, \Omega$ in
$\text { parallel }=\frac{6 \times 3}{9}=2 \Omega$
$2\, \Omega$ and $4\, \Omega$ in series $= 6\, \Omega$
$6\, \Omega$ and $3\, \Omega$ in parallel $= 2\, \Omega$

$\mathrm{R_{\text {eq }}=4+4+2=10\, \Omega}$
$\mathrm{ i=\frac{120}{10}=12 \mathrm{~A}}$ .

$\mathrm{ \Rightarrow}$ current through
$\mathrm{2 \, \Omega}$ is $\mathrm{\frac{8}{3}\, A}$ .

Posted by

Suraj Bhandari

View full answer
