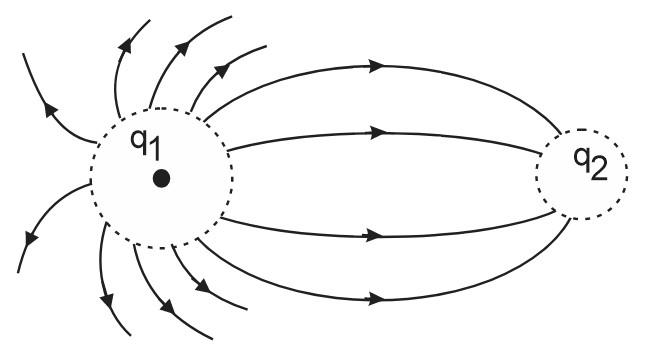

The field lines of two changes are shown are shown in figure the ratio \mathrm{\frac{q_{1}}{q_{2}}} will be


Option: 1

2


Option: 2

4


Option: 3

5


Option: 4

3


Answers (1)

The field lines emerge from \mathrm{q_{1}} are\mathrm{12} while terminate towards \mathrm{q_{2}} are \mathrm{4} ,

\mathrm{\frac{q_{1}}{q_{2}}=\frac{12}{4}=3}

The change\mathrm{q_{2}} is negative
