  • The form factor for which of these were is <div class='qna-op

The form factor for which of these were is \frac{\pi }{2\sqrt{2}}

Option: 1


Option: 2


Option: 3


Option: 4


Answers (1)

best_answer

As we learnt

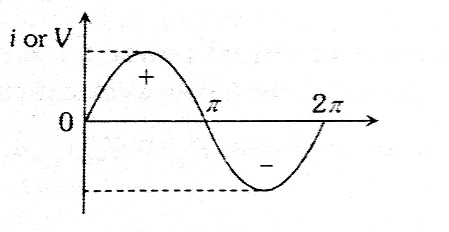

Wave Form (Sinusoidal) -



R.M.S. Value= \frac{i_{0}}{\sqrt{2}}

average value= \frac{2i_{0}}{\pi }

- wherein







 form factor, R_f=\frac{rms\: \: value}{average\: \: value}

For sinusoidal wave

R.M.S. Value = \frac{i_{0}}{\sqrt2}

average value= \frac{2i_{0}}{\pi }

R_f=\frac{\frac{i_0}{\sqrt2}}{\frac{2i_0}{\pi}}\Rightarrow R_f=\frac{\pi }{2\sqrt{2}}

Posted by

qnaprep

View full answer
