Which one of the following is the correct bond angle between atoms adopting a trigonal planar geometry?

Option: 1

180^{o}


Option: 2

109.5^{o}


Option: 3

90^{o}


Option: 4

120^{o}


Answers (1)

VSPER (Valence Shell Electron Pair Repulsion) Theory -

As given in the table below, two regions of electron density around a central atom in a molecule form a linear geometry, three regions form a trigonal planar geometry, four regions form a tetrahedral geometry, five regions form a trigonal bipyramidal geometry, and six regions form an octahedral geometry.

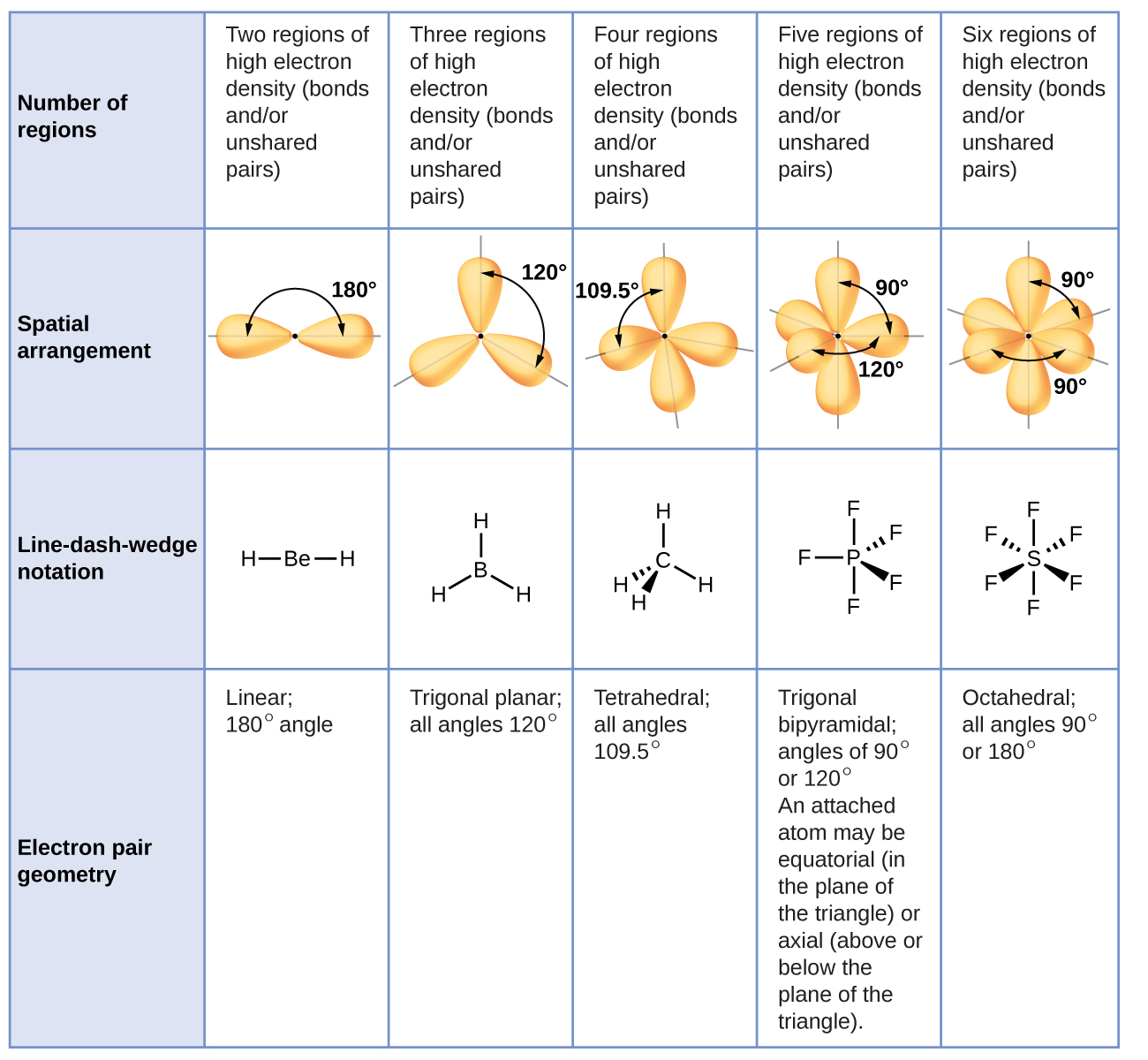

A table with four rows and six columns is shown. The header column contains the phrases, “Number of regions,” “Spatial arrangement,” “Wedge/dash Notation,” and “Electron pair Geometry.” The first row reads: “Two regions of high electron density ( bonds and/or unshared pairs )”, “Three regions of high electron density ( bonds and/or unshared pairs ),” “Four regions of high electron density ( bonds and/or unshared pairs ),” “Five regions of high electron density ( bonds and/or unshared pairs ),” and “Six regions of high electron density ( bonds and/or unshared pairs ).” The second row shows diagrams of orbitals. The first image shows two oval-shaped orbs with an arrow indicating an angle of 180 degrees. The second image shows three oval-shaped orbs with an arrow indicating an angle of 120 degrees. The third image shows four oval-shaped orbs with an arrow indicating an angle of 109.5 degrees. The fourth image shows five oval-shaped orbs with an arrow indicating an angle of 90 and 120 degrees. The fifth image shows six oval-shaped orbs with an arrow indicating an angle of 90 degrees. The third row contains Lewis structures. The first structure shows a beryllium atom single bonded to two hydrogen atoms. The second structure shows a boron atom single bonded to three hydrogen atoms. The third structure shows a carbon atom single bonded to four hydrogen atoms. The fourth structure shows a phosphorus atom single bonded to five fluorine atoms. The fifth structure shows a sulfur atom single bonded to six fluorine atoms. The fourth row contains the phrases “Linear; 180 degree angle,” Trigonal Planar; all angles 120 degrees,” “Tetrahedral; all angles 109.5 degrees,” “Trigonal bipyramidal; angles of 90 degrees and 120 degrees. An attached atom may be equatorial, ( in the plane of the triangle ), or axial, ( above the plane of the triangle ),” and “Octahedral; 90 degrees or 180 degrees.”

A molecule having trigonal planar geometry has bond angle of about 120^{o} . Therefore bond angle between atoms adopting a trigonal planar geometry is 120^{o} .
Hence, option number (4) is correct.
