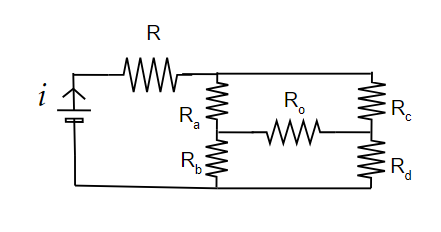

In the following circuit, it is observed that the current I is independent of the value of Resistance R_0. Then the resistance values must satisfy:-

Option: 1

R_{a} R_{b} R=R_{0} R_{c} R_{d}


Option: 2

R_{a} R_{d}=R_{b} R_{c}


Option: 3

R_{a} R_{c}=R_{b} R_{d}=R R_{0}


Option: 4

\frac{1}{R_{a}}+\frac{1}{R_{d}}=\frac{1}{R_{b}}+\frac{1}{R_{c}}


Answers (1)

best_answer

As it is given that i is independent of R_{0} then R_{a}, R_{b}, R_{c} and R_{d} must form a balanced wheatstone bridge.

Hence
R_{a} R_{d}=R_{b} R_{c}

Posted by

Nehul
