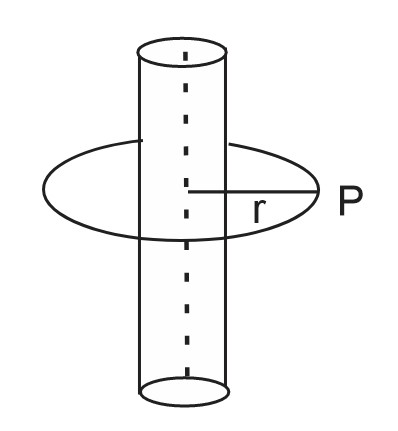

The magnetic field due to a long straight current carrying conductor of radius R, when r>R\: [\: r \rightarrow distance between the point and the axis of wire] proportional to -

Option: 1

r


Option: 2

r^{-1}


Option: 3

r^{2}


Option: 4

r^{-2}


Answers (1)

best_answer

\mathrm{ \int \bar{B} \cdot d \bar{e}=\mu_0 \int \bar{J} \cdot d s }\mathrm{ B \cdot 2 \pi r=\mu_0\left[\begin{array}{c}\text { current crossing the bounded } \\ \text { surface }]\end{array}\right. }

\mathrm{ when\: r>R, current\, \, crossing \, \, bounded\, \, surface\, \, is\, \, I, }
\mathrm{ \begin{gathered} B \cdot 2 \pi r=\mu_0 I \\ B=\frac{\mu_0}{4 \pi} \frac{2 I}{r} \\ B \alpha \frac{1}{r} \text { Ans. } \end{gathered} }
